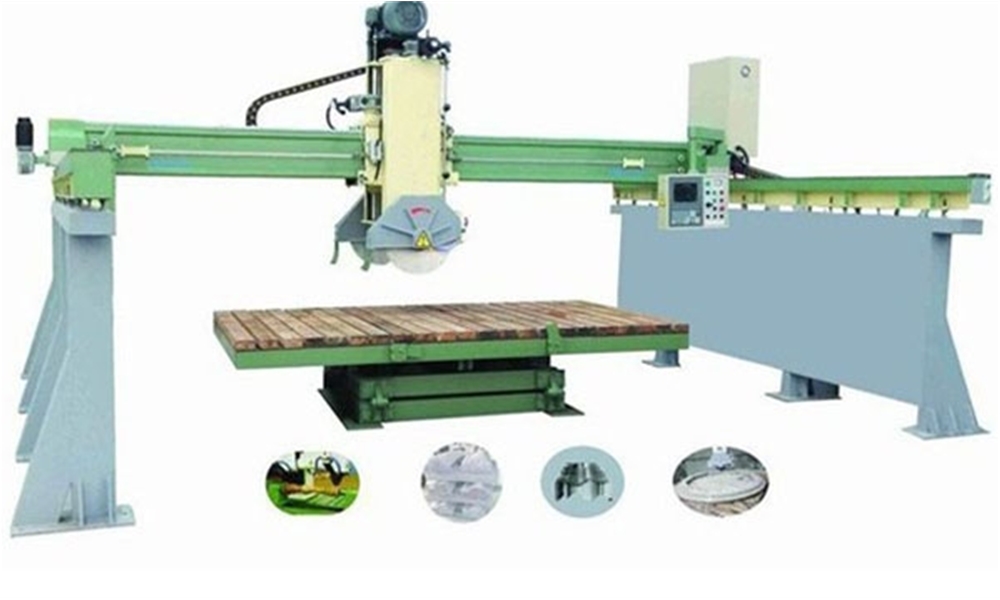

QQY320*220 Three-dimensional Bridge Automatic Cutting Machine

Name:QQY320*220 Three-dimensional Bridge Automatic Cutting Machine

Details
It adopts PLC control and automatic positioning techniques for various moves of the cutter frame & linear rolling guide driving,magnetic ruling,laser device setting.It is consists of high quality steel. The platform can be 360degree rotatable and automatically trun slate up.It can cut sizeable slabs with high precision and efficiency.

max.blade of diameter φ400-600mm
max.stroke for transverse 3800mm
max.stroke for longitudinal 3800mm
elevation stoke for main shaft of blade 330mm
max.titling degree for work-bench 87
max.rotation degree for work-bench 360
location degree for work-bench 0°- 45°- 90°
power of main motor 18.5kw
total power of machine 23.5kw
water consumption 2m3/h
water pressure >0.2 Mpa
overall size for machine 4800×5816×2350mm
otal weight for machine 5800kg
